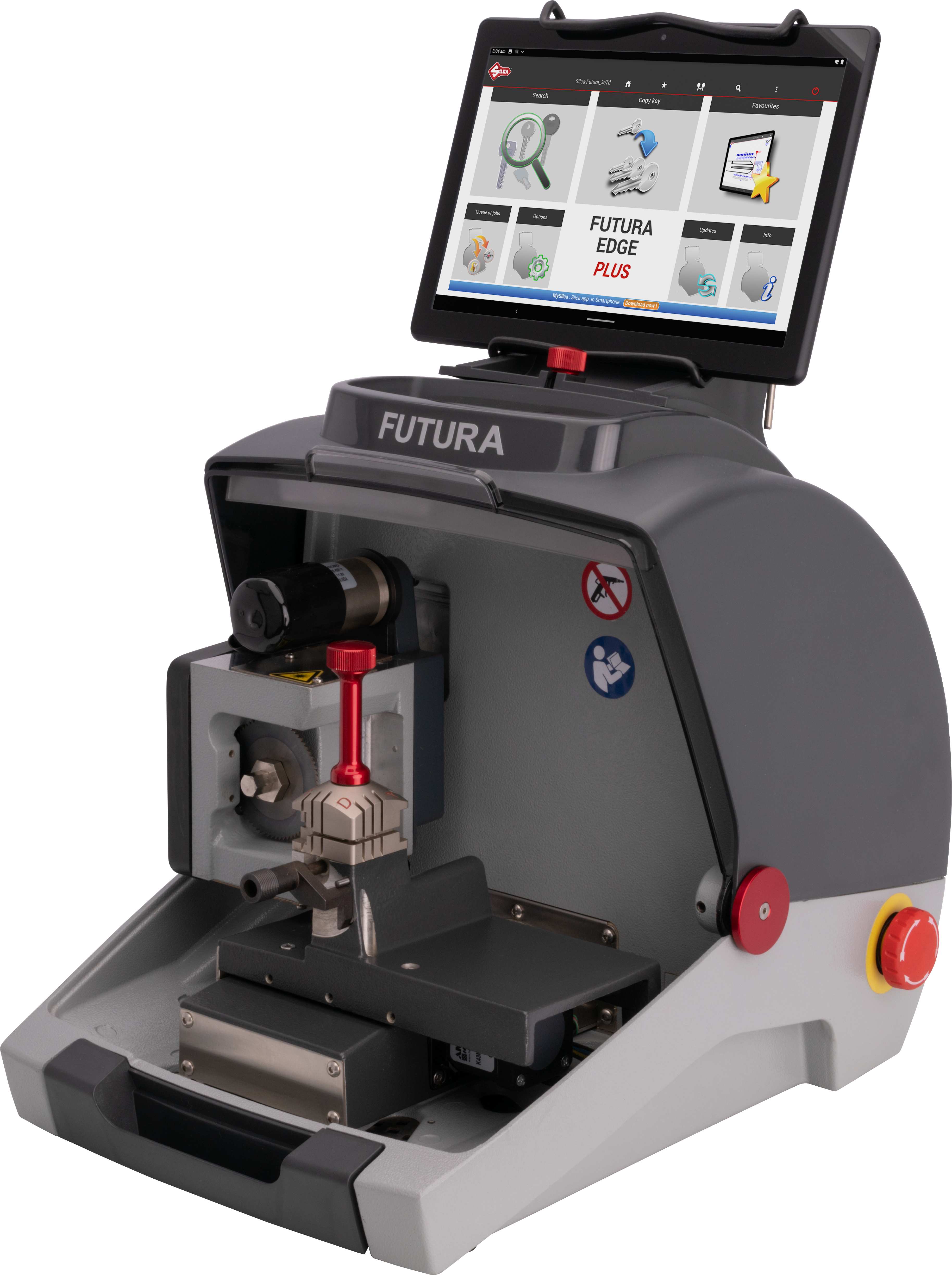

Silca Futura Edge Plus - Cuts Edge Cut and Medeco Biaxial Keys (By code and Duplicate) | Save $1,605.55 Supply
Silca Futura Edge Plus - Cuts Edge Cut and Medeco Biaxial Keys (By code and Duplicate) | Save $1,605.55 Supply - Image 2
Silca Futura Edge Plus - Cuts Edge Cut and Medeco Biaxial Keys (By code and Duplicate) | Save $1,605.55 Supply - Image 3

Silca Futura Edge Plus – Cuts Edge Cut and Medeco Biaxial Keys (By code and Duplicate) | Save $1,605.55 Supply

SKU: 4106DF88A77FFF60

Original price was: $4,596.05.Current price is: $1,378.82.

In Stock
Add to wishlist

  • Price match promise

  • Free delivery on all orders

  • Safe & secure transaction

  • Extended Christmas return policy

Recently Viewed

LEATHERMAN Wingman Multitool With Spring-Action Pliers and Scissors Discount

LEATHERMAN Wingman Multitool With Spring-Action Pliers and Scissors Discount

Original price was: $55.96.Current price is: $27.98.

Description

Spring Promo: Take $1,605.55 off the Futura Edge Plus key machine—limited-time savings through May 5th!

The Futura Edge Plus is ideal for professional and new users thanks to the incorporated software-guided procedures. The lightweight and small footprint also make this machine perfect for locksmiths offering mobile services. If you re in the market for a code machine for edge cut keys as well as Medeco biaxial keys the Futura Edge Plus is the right machine for the job!

Built on the successful Futura Edge platform the Futura Edge Plus is designed and engineered to originate, decode and copy edge-cut keys for commercial, residential, and automotive. However, the main feature that sets this machine apart from its predecessor is a tilting cutter assembly that also allows the cutting and decoding of Medeco® biaxial keys and operates in 3 positions. The optional 07V clamp has a built-in tip stop to allow the user to easily clamp all current keyways for Kaba Peaks® and Best® keys. Jaw position E (BEST®) is designed for clamping Best® keys that have 0.150” spacing between cuts and can also be used for the Peaks® applications that utilize the 0.150” spacing. Jaw position F is used for the Peaks® systems utilizing 0.140” spacing. Simply install the 07V in place of the 08V and calibrate the clamp to the machine.

Work Efficiencies:

• Fast cutting cycles.

• Patented laser reading of the key profile allows you to copy a key without searching for the relevant card.

• The tablet and electronics used in the Futura Edge Plus delivers fast start-up and fast response times between the tablet and the machine reducing the overall time to duplicate a key.

• All exposed screws are made of stainless steel for better resistance to wear and longer life.

• Details include a tool accessory holder on top of the machine and a protective shield.

• The unique 08V clamp has 4 universal sides for holding flat keys, vehicle keys, and cruciform keys. Side B is designed for Medeco® keys.

• Securely clamp standard residential commercial keys on side A.

• Sides C and D are dedicated to automotive keys (“tongue and groove system”) to allow for proper alignment of two-sided keys so that even worn keys can be easily decoded.

• The color-changing LED lights help the operator to immediately see the process status: white – the machine is ready to proceed, yellow – the machine is in the process of cutting the key, green – the key cutting is complete and it is safe to raise the safety shield.

• Wi-Fi link between machine and tablet or the user can tether the tablet directly to the machine.

• Equipped with two USB ports on the back of the machine; one for tablet recharge and one for the tethering connection so the machine and tablet remain connected and operational even when the Wi-Fi connection is lost or unstable. The second USB port can also be used to connect the supplied USB flash drive to import code tables or machine software updates.

• Software Interface with Instacode® and Kreate-A-Key® • Code Maker software allows users to create custom cutting cards for standard edge-cut keys

Features Include:

• Fast cutting cycles thanks to a motor that reaches a speed of 2,100 rpm.

• Optical Laser for quick “Copy by Original” or “Decode and Copy” of edge-cut keys.

• The unique 08V clamp has 4 universal sides for holding flat keys, vehicle keys, and cruciform keys. Side B is designed for Medeco® keys.

• Futura EDGE PLUS is controlled by a removable 10” touch screen tablet, which guides the user step-by-step in all key-cutting operations.

• Tablet communicates with the machine via a Wi-Fi signal generated by the machine. • Fast start-up and fast response times between the tablet and machine.

• Software features include shortcut function for vehicle key cutting code searches and a key cut preview.

• Two USB ports on the back of the machine; one for tablet recharge and one for the tethering connection so the machine and tablet remain connected and operational even when the Wi-Fi connection is lost or unstable. The second USB port can also be used to connect the supplied USB flash drive to import code tables or machine software updates.

• Includes mounting bracket.

• Optional 06V Clamp for secure clamping of Best® style keys.

• Optional 07V Clamp for secure clamping of Peaks® and Best® style keys.

• Optional Codemaker Software allows users to create their own cards.

Ease of Operation:

• Generous sized working area, easily accessible and always clean thanks to the swarf collection system and the pull-down protective screen

• Shortcut function for vehicle key cutting code searches. Just input the first letters and the software will prompt the make and model you re looking for, so you don’t have to manually enter the entire field.

• Multi-language support

Compact and Lightweight:

• Compact, lightweight and portable with ergonomic grip for easy lifting.

• Safety shield slides within the machine body making it perfect for small shops and vans.

• Removable tablet stand can be locked onto the hood of the machine or placed on the counter.

Safety Features:

• Transparent safety shield contains chips and isolates moving parts

• All operations are disabled immediately when the safety cover is retracted.

• Large emergency stop button on side of the machine

Technical Data:

Motor: 24V d.c., 5,5 Amp, 130W
Power Supply: 90 264V a.c 50 60Hz 220W
Tool Speed: 2100 RPM
Prismatic Cutter: D746012ZB
Movements: 2 axes (with special bushes) driven by step motors (on rectified roller guides) 3rd tilting axis (with special bushings) controlled by stepper motor
Carriage Runs: Axis X 1.18” (30mm) x Axis Y 1.97” (50mm)
Dimensions: Width – 12.52” (318mm), Depth – 16.26” (413mm), Height – 20.55” (522mm), 13.38” (340mm) without tablet
Weight: 9.47 lbs. (17.9 kg)
Warranty: 2-year warranty*

Standard Parts Accessories:

Clamp: 08V D9A3598ZR
Cutter: U01 D746012ZB
Accessories: STOP 4 TOOL, Stop Bars, USB Pen, Brush, Mounting bracket, Stylus touch pen, Z3 calibration keys, tools, hex wrenches, spare fuses.

Optional Parts Accessories Interface:  Jaw – 06V BEST® JAW D751896ZB Jaw – 07V PEAKS® BEST® JAW D749960ZB

Availability -10 business days

* This key machine is eligible for an optional three-year extended warranty, providing added assurance for your investment. If you are interested in purchasing the extended warranty, kindly complete this form and submit it to Kaba Ilco, the manufacturer. Should you require further clarification or assistance, you can email or give us a call and we would be happy to help.
